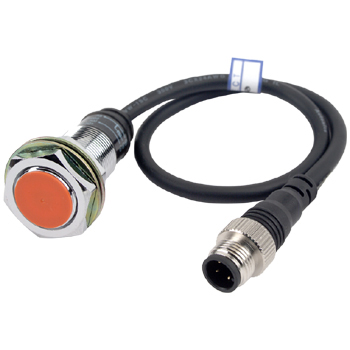

Ordering Information
Specification Table
• DC 2-wire type
| Model |
PRWT08-1.5DO
PRWT08-1.5DC
PRWT08-1.5DO-I
PRWT08-1.5DC-I
PRWT08-1.5DO-V
PRWT08-1.5DC-V
PRWT08-1.5DO-I V
PRWT08-1.5DC-I V |
PRWT08-2DO
PRWT08-2DC
PRWT08-2DO-I
PRWT08-2DC-I
PRWT08-2DO-I V
PRWT08-2DC-I V |
PRWT12-2[D]O
PRWT12-2[D]C
PRWT12-2[D]O-I
PRWT12-2[D]C-I |
PRWT12-4[D]O
PRWT12-4[D]C
PRWT12-4[D]O-I
PRWT12-4[D]C-I |
PRWT18-5[D]O
PRWT18-5[D]C
PRWT18-5[D]O-I
PRWT18-5[D]C-I |
PRWT18-8[D]O
PRWT18-8[D]C
PRWT18-8[D]O-I
PRWT18-8[D]C-I |
PRWT30-10[D]O
PRWT30-10[D]C
PRWT30-10[D]O-I
PRWT30-10[D]C-I
PRWT30-10[D]O-V
PRWT30-10[D]C-IV |
PRWT30-15[D]O
PRWT30-15[D]C
PRWT30-15[D]O-I
PRWT30-15[D]C-I
PRWT30-15[D]O-V
PRWT30-15[D]C-IV |
| Sensing distance |
1.5mm |
2mm |
4mm |
5mm |
8mm |
10mm |
15mm |
| Hysteresis |
Max. 10% of sensing distance |
| Standard sensing target |
8x8x1mm
(lron) |
12x12x1mm
(lron) |
18x18x1mm (Iron) |
25x25x1mm (Iron) |
30x30x1mm (Iron) |
45x45x1 mm (Iron) |
| Setting distance |
0 to 1.05mm |
0 to 1.4mm |
0 to 2.8mm |
0 to 3.5mm |
0 to 5.6mm |
0 to 7mm |
0 to 10.5mm |
| Power supply (Operation voltage) |
12-24VDC
(10-30VDC) |
| Leakage current |
Max. 0.6mA |
| Response frequency※1 |
1.5kHz |
1kHz |
1.5kHz |
500Hz |
350Hz |
400Hz |
200Hz |
| Residual voltage※2 |
Max. 3.5V(Non-polarity type Is Max. 5V) |
| Affection by Temp. |
Max. ±10% for sensing distance at ambient temperature 20℃(For PRWT08 series : ±20% Max,) |
| Control output |
2 to 100mA |
| Insulation resistance |
Min. 50MΩ(at 500VDC meggera) |
| Dielectric strength |
1500VAC 50/60Hz for 1 minute |
| Vibration |
1mm amplitude at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 2 hours |
| Shock |
500m/s²(approx. 50G)in each of X, Y, Z directions for 3 times |
| Indicator |
Operation indicator(red LED) |
| Environ- ment |
Ambient temperature |
-25 to 70℃, storage : -30 to 80℃ |
| Ambient humidity |
35 to 95% RH, storage :35 to 95% RH |
| Protection circuit |
Surge protection circuit |
Surge protection circuit, Overcurrent protection circuit |
| Protection |
IP67(IEC standard) |
| Material |
Case/Nut: Nikel plated Brass, Washer: Nikel plated Iron, Sensing surface: PBT,
Standard cable(Black): Polyvinyl chloride(PVC), Oil resistant cable(Gray): Oil resistant Polyvinyl chloride(PVC) |
| Cable |
ø4, 2-wire, 300mm, M12 connector |
ø5, 2-wire, 300mm, M12 connector |
| Approval |
CE |
| Unit weight※3 |
Approx. 44g
(Approx. 32g) |
Approx. 54g
(Approx. 42g) |
Approx.70g
(Approx. 58g) |
Approx. 134g
(Approx. 122g) |
※When the [ ] model name is X, it is non-polarity model
※1: The response frequency is the average value. The standard sensing target is used and the width is set as 2 times of the standard sensing target, 1/2 of the sensing distance for the distance.
※2: Before using non-polarity type, check the condition of connected device because residual voltage is 5V.
※3: The weight with packaging and the weight in parentheses is only unit weight.
※Please fasten the vibration part with Teflon type.
※The '□' of model name is for power type. 'D' is 12-24VDC, 'X' is non-polarity 12-24VDC.
※The last 'V' of model name is for the model with oil-resistance reinforced cable.
※Environment resistance is rated at no freezing or condensation.
• DC 3-wire type
| Model |
PRW08-1.5DN
PRW08-1.5DP
PRW08-1.5DN2
PRW08-1.5DP2
PRW08-1.5DN-V
PRW08-1.5DP-V
PRWL08-1.5DN
PRWL08-1.5DP
PRWL08-1.5DN2
PRWL08-1.5DP2 |
PRW08-2DN
PRW08-2DP
PRW08-2DN2
PRW08-2DP2
PRW08-2DN-V
PRW08-2DP-V
PRWL08-2DN
PRWL08-2DP
PRWL08-2DN2
PRWL08-2DP2 |
PRW12-2DN
PRW12-2DP
PRW12-2DN2
PRW12-2DP2 |
PRW12-4DN
PRW12-4DP
PRW12-4DN2
PRW12-4DP2 |
PRW18-5DN
PRW18-5DP
PRW18-5DN2
PRW18-5DP2
PRWL18-5DN
PRWL18-5DP
PRWL18-5DN2
PRWL18-5DP2 |
PRW18-8DN
PRW18-8DP
PRW18-8DN2
PRW18-8DP2
PRWL18-8DN
PRWL18-8DP
PRWL18-8DN2
PRWL18-8DP2 |
PRW30-10DN
PRW30-10DP
PRW30-10DN2
PRW30-10DP2
PRW30-10DN-V
PRW30-10DP-V
PRWL30-10DN
PRWL30-10DP
PRWL30-10DN2
PRWL30-10DP2 |
PRW30-15DN
PRW30-15DP
PRW30-15DN2
PRW30-15DP2
PRW30-15DN-V
PRW30-15DP-V
PRWL30-15DN
PRWL30-15DP
PRWL30-15DN2
PRWL30-15DP2 |
| Sensing distance |
1.5mm |
2mm |
4mm |
5mm |
8mm |
10mm |
15mm |
| Hysteresis |
Max. 10% of sensing distance |
| Standard sensing target |
8×8×1mm
(Iron) |
12x12x1mm
(lron) |
18x18x1mm(lron) |
25×25×1mm(Iron) |
30x30x1mm(lron) |
45x45x1 mm(lron) |
| Setting distance |
0 to 1.05mm |
0 to 1.4mm |
0 to 2.8mm |
0 to 3.5mm |
0 to 5.6mm |
0 to 7mm |
0 to 10.5mm |
| Power supply (Operation voltage) |
12-24VDC
(10-30VDC) |
| Current consumption |
Max. 10mA |
| Response frequency※1 |
1.5kHz |
1kHz |
1.5kHz |
500Hz |
350Hz |
400Hz |
200Hz |
| Residual voltage |
Max. 2V |
Max. 1.5 V |
| Affection by Temp. |
Max. ±10% for sensing distance at ambient temperature 20℃(For PRW(L)08 series : ±20% Max,) |
| Control output |
200mA |
| Insulation resistance |
Min. 50MΩ(at 500VDC megger) |
| Dielectric strength |
1500VAC 50/60Hz for 1 minute |
| Vibration |
1mm amplitude at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 2 hours |
| Shock |
500m/s²(approx. 50G) in each of X, Y, Z directions for 3 times |
| Indicator |
Operation indicator(red LED) |
Environ
-ment |
Ambient temperature |
-25 to 70℃, storage : -30 to 80℃ |
| Ambient humidity |
35 to 95%RH, storage :35 to 95%RH |
| Protection circuit |
Surge protection circuit, Reverse polarity proteciton circuit, Overcurrent protection circuit |
| Protection |
IP67(IEC standard) |
| Material |
Case/Nut: Nikel plated Brass, Washer: Nikel plated Iron, Sensing surface: PBT,
Standard cable(Black): Polyvinyl chloride(PVC), Oil resistant cable(Gray): Oil resistant Polyvinyl chlorde(PVC) |
| Cable |
ø4, 3-wire, 300mm, M12 connector |
ø5, 3-wire, 300mm, M12 connector |
| Approval |
CE |
| Unit weight※2 |
PRW: Approx. 44g( Approx. 32g)
PRWL: Approx. 46g(Approx. 34g) |
Approx. 54g(Approx. 42g) |
PRW: Approx. 70g(Approx. 58g)
PRWL: Approx. 90g(Approx. 78g) |
PRW: Approx. 134g(Approx. 122g)
PRWL:Approx. 195g(Approx. 158g) |
• AC 2-wire type
| Model |
PRW12-2AO
PRW12-2AC |
PRW12-4AO
PRW12-4AC |
PRW18-5AO
PRW18-5AC
PRWL18-5AO
PRWL18-5AC |
PRW18-8AO
PRW18-8AC
PRWL18-8AO
PRWL18-8AC |
PRW30-10AO
PRW30-10AC
PRWL30-10AO
PRWL30-10AC |
PRW30-15AO
PRW30-15AC
PRWL30-15AO
PRWL30-15AC |
| Sensing distance |
2mm |
4mm |
5mm |
8mm |
10mm |
15mm |
| Hysteresis |
Max. 10% of sensing distance |
| Standard sensing target |
12x12x1mm
(lron) |
18x18x1mm(lron) |
25x25x1mm(lron) |
30x30x1mm(lron) |
45x45x1mm(lron) |
| Setting distance |
0 to 1.4mm |
0 to 2.8mm |
0 to 3.5mm |
0 to 5.6mm |
0 to 7mm |
0 to 10.5mm |
| Power supply (Operation voltage) |
100-240VAC
(85-264VAC) |
| Leakage current |
Max. 2.5mA |
| Response frequency※1 |
20Hz |
| Residual voltage |
Max. 10V |
| Affection by Temp. |
Max. ±10% for sensing distance at ambient temperature 20℃ |
| Control output |
5 to 150mA |
15 to 200mA |
| Insulation resistance |
Min. 50MΩ(at 500VDC megger) |
| Dielectric strength |
2.500VAC 50/60Hzfor 1 minute |
| Vibration |
1mm amplitude at frequency of 10 to 55Hz(for 1 mln.) in each of X, Y, Z directions for 2 hours |
| Shock |
500m/s²(approx. 50G) in each of X, Y, Z directions for 3 times |
| Indicator |
Operation indicator(red LED) |
Environ
-ment |
Ambient temperature |
-25 to 70℃, storage : -30 to 80℃ |
| Ambient humidity |
35 to 95%RH, storage :35 to 95%RH |
| Protection circuit |
Surge protection circuit |
| Protection |
IP67(IEC standard) |
| Material |
Case/Nut: Nikel plated Brass, Washer: Nikel plated Iron, Sensing surface: PBT,
Standard cable(Black): Polyvinyl chloride(PVC) |
| Cable |
ø4, 2-wire, 300mm, M12 connector |
ø5, 2-wire, 300mm, M12 connector |
| Approval |
CE |
| Unit weight※2 |
Approx. 54g(Approx. 42g) |
PRW: Approx. 78g (Approx. 66g)
PRWL: Approx. 90g (Approx. 78g) |
PRW: Approx. 134g(Approx. 122g)
PRWL: Approx. 195g(Approx. 158g) |
※1: The response frequency is the average value. The standard sensing target is used and the width is set as 2 times of the standard sensing target, 1/2 of the sensing distance for the distance.
※2: The weight with packaging and the weight in parentheses is only unit weight.
※The last 'V' of model name is for the model with oil-resistance reinforced cable.
※Environment resistance is rated at no freezing or condensation.
Dimensions
Connections
|
